An HTM64 compliant sequential lever thermostatic mixer tap with cooler safetouch surface temperature.
- Full elbow lever control sequential operation
- Suitable for all healthcare/commercial applications including medical facilities,GP practices, hospitals, nursing homes.
- TMV3 (public use) compliant
- Integral flush to assist against infection
- by Bristan
Compliances
WRAS & TMV3
NHS engineering specification D08
Sizes/Technical

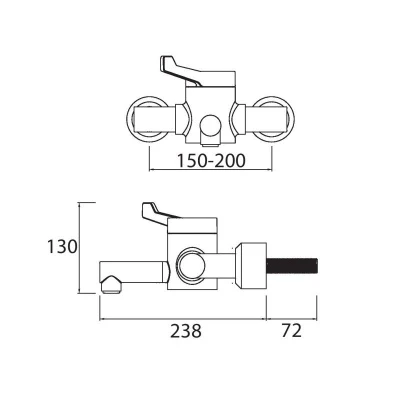

Dimensions
Inlet centres: 150-200mm
Reach: 238mm
Overall height: 130mm
Operating Requirements
Min pressure: 0.2 bar
Max Pressure: 5.0 bar
Max hot inlet temp: 60 degrees
Flow Rates
0.5 bar: 2.6 L/min
2.0 bar: 5.1 l/min
