HART Exposed Foot Flow Control And Washroom Swivel Spout Set | Foot Control Handwashing

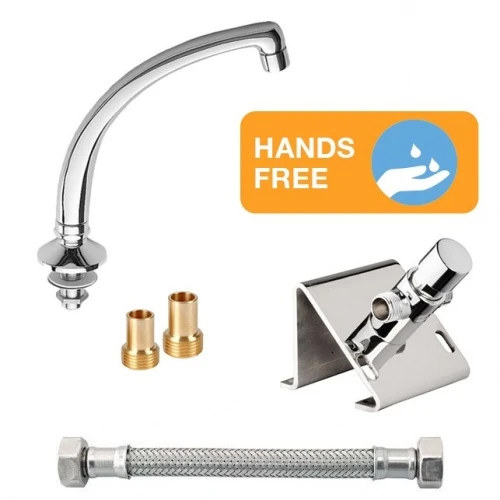

A commercial use Hands Free washing station including floor mounted foot operated flow control in its own frame, swivel spout and hose – operated by depressing the pedal by foot for hands free water dispensing.

‘Hands free operation to combat the spread of viruses’

• Suitable for commercial/special needs application where hands free operation is required
• Foot control valve provides continuous water supply whilst button is depressed
• Flow continues for approx. 3 seconds after button is released
• Strong, secure floor mounted control
• Countertop swivel spout for sinks and basins with a reach of 200mm – spout fully swivels 360°
• For use with cold, hot or premixed water (max 65° C)
• 1/2″ BSP connections
• Includes 100cm long connector hose – allows spout to be positioned anywhere convenient
• 1/2″ Female x 1/2″ Female connections
• Includes a pair of solid brass tap tail adaptors – 1/2″ BSP to 15mm

Specification / Technical

Foot Pedal

Min pressure: 0.5 Bar
Max pressure: 8 bar
Max inlet temp: 65°C

Length from wall: 135mm
Height of pedal: 120mm

Spout

Reach of spout: 200mm
Height of spout: 180mm
Connection: 1/2″ BSP
Chrome plated finish
