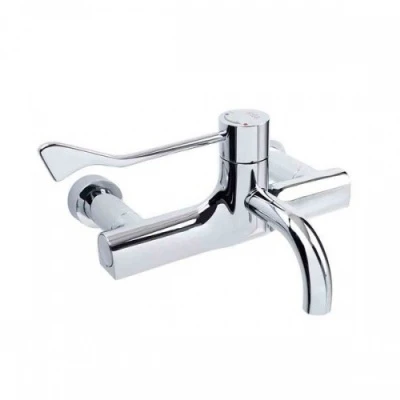

An HTM64 compliant sequential mixer tap with anti-scald safetouch technology designed for medical and public use.
- Full elbow control sequential operation
- Helps prevent scalding – temp stability +/- 2 degrees
- Suitable for commercial applications incuding medical facilities, doctors and dentists surgeries, hospitals, nursing homes.
- TMV3 (public use) compliant
Compliances
WRAS & TMV3
NHS engineering specification D08

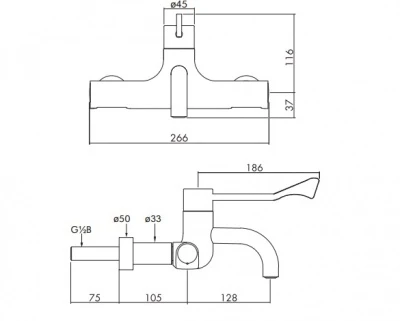

Sizes/Technical
Fitting centres: 200mm
Reach: 225mm
Overall height: 120mm
Lever length: 189mm
Operating Requirements
Min pressure: 1.0 bar
Max Pressure: 5.0 bar
Max inlet temp: 85 degrees
