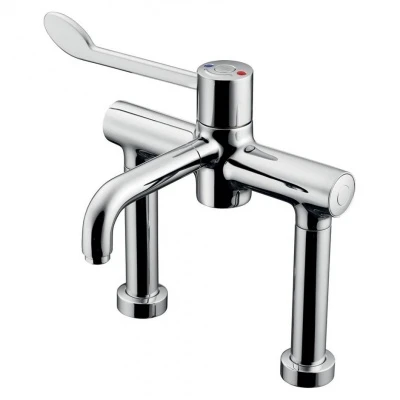

An HTM64/HTM04-01 compliant hospital/healthcare use demountable pillar (surface/deck) mixer tap with removable spout and fitted with Armitage Shanks Bioguard outlet
• Demountable design – allows tap to be easily removed for servicing
• Detachable spout
• Thermal cleanse feature
• Built in isolation valves
• Extended 207mm long elbow lever – sequential operation for on/off and temperature control
• Insulated body helps to prevent accidental scalding
• Suitable for commercial hygiene use including medical, healthcare, doctors, dentist surgeries, nursing homes etc.
Technical

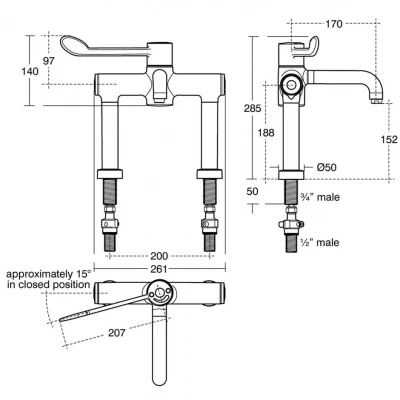

Dimensions
Reach from wall: 170mm
Inlet centres: 200mm
Connections: 1/2″ BSP
Flow rate: 7.5 L/min @3 bar water pressure (max flow regulated to 10 l/min)
Flow rate: 7.5 L/min @3 bar water pressure (max flow regulated to 10 l/min)
Compliances
WRAS & TMV3
NHS Engineering Specification D0
HBN 00.10, HBN 00.09 and HTM 04-01
