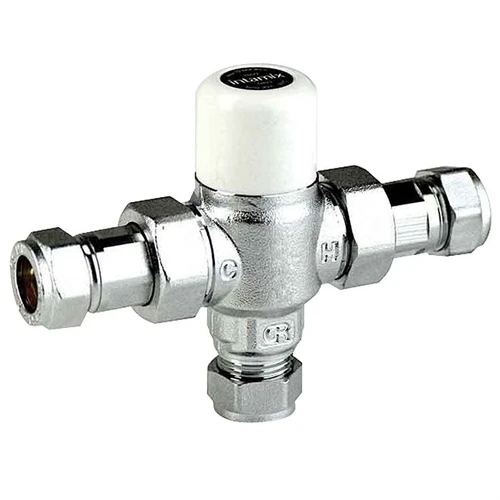

Intamix 22mm Thermostatic Mixing Valve

A TMV3 failsafe thermostatic mixing valve for safely blending hot and cold water feeds to a safe water temperature.

• TMV3 Scheme approved
• 22mm inlet size
• Ideal for combination with single feed taps eg sensor taps, non concussive taps etc.
• May also be used to control the maximum hot inlet temperature
• Suitable for commercial use including healthcare, hospitals, care and nursing homes, public use buildings.

Technical Information

Temp adjustment range: 30-50 degrees C
Temperature stability: +/- 2 degrees C
Max inlet temperature: 85 degrees C
Max operating pressure: 10 bar
