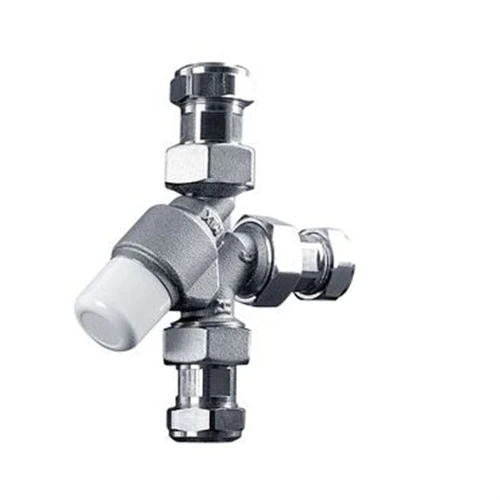

Intamix Failsafe L Mix Thermostatic Mixing Valve

A TMV2 & TMV3 approved  failsafe thermostatic mixing valve for safely blending hot and cold water feeds to a safe water temperature. ‘L’ shaped design is particularly suitable for retro fitting and limited access spaces eg under a bath

• TMV2 & TMV3 Scheme approved
• 15mm or 22mm inlet sizes
• The hot and mixed water ports are perpendicular, which reduces the need for pipework modifications and helps to save a significant amount of installation time – especially in retro fit applications
• Delivers temperature safe  hot water to taps, showers & water outlets

Areas of Use

Hospitals, Care Homes, Schools, Leisure Centres, Domestic Bathrooms

Technical Information

Temp adjustment range: 30-50 degrees C
Temperature stability: +/- 2 degrees C
Max inlet temperature: 85 degrees C
Operating pressure: 0.2-10 bar
Height:160mm , Width:134mm

Compliances

TMV2 & TMV3
WRAS
Buildcert
National Health Service Model Engineering Specification D08
