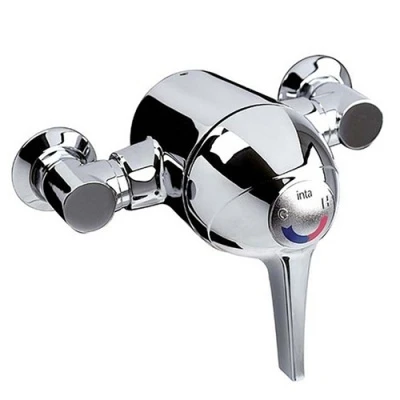

Intatec Vista Exposed Sequential Thermostatic Valve

A TMV3 compliant sequential shower valve with anti-scald safetouch technology designed for medical, care and public use.

• Bottom outlet – 1/2″ Connection
• Full lever control sequential operation
• Helps prevent scalding – temp stability +/- 2 degrees
• Suitable for commercial applications incuding care homes,medical use, hospitals, nursing homes.
• TMV3 (public use) compliant

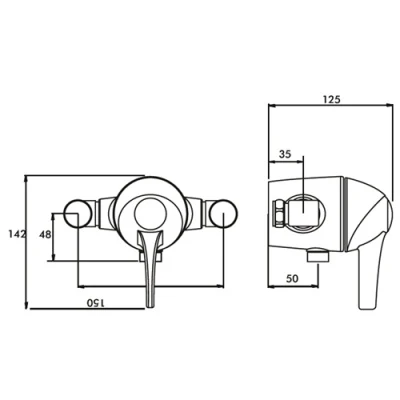

Sizes

Reach: 125mm (from wall)
Overall height: 150mm

Operating Requirements

Min pressure: 0.2 bar
Max Pressure: 5.0 bar
Max inlet temp: 85 degrees

Compliances

WRAS & TMV3
