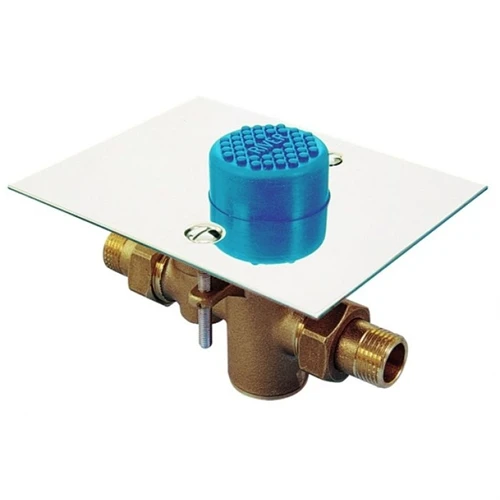

Pressflow Recessed Push Button Foot Control

A floor fitted push down button control to provide hands free water supply – The button control provides continuous water supply whilst the button is depressed – For water supply to separate outlets

• For commercial or domestic use where hands free operation is required
• Recessed floor installation
• For use with single temperature/premixed water (max 80° C)
• 1/2″ BSP inlet/outlets
• Will operate as long as button is depressed

Note: Please allow 7 working days delivery for this item

Specification / Dimensions

Min/Max pressure: 1.0 Bar – 10.0 Bar
Recommended pressure: 1.0-3.0 Bar
Floor Plate size: 110mm x 140mm
Depth into floor: 85mm
Length of valve: 142mm
