Unknown 1/2″ (25mm) Push Fit Thermostatic Cartridge – 4 O-Ring Seal

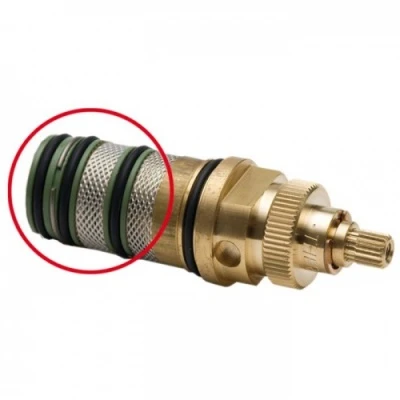

A  1/2″ BSP (25mm diameter) replacement  thermostatic cartridge with 4 o-ring seal – secured by retaining grub screw

Manufactured in Italy

• Advanced wax element shuts off hot water if the cold supply fails
• Safety preset to 38 degrees
• Operating pressure: 1-5 bar
• Push fit design – secured with retaining grub screw
• Flow rate: 27l/min @ 3 bar pressure
• Spline is approx. 8mm diameter with 20 teeth

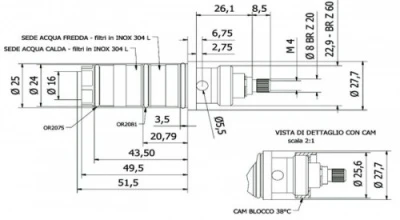

• Height: 90mm

Technical
Maximum pressure (static): 10 bar
Recommended pressure (dynamic): 1-5 bar
Maximum inlet temperature : 85°C
Control range: 17-59°C
Temperature of the inlet hot water: 65 °C
Temperature of the inlet cold water : 15 °C
